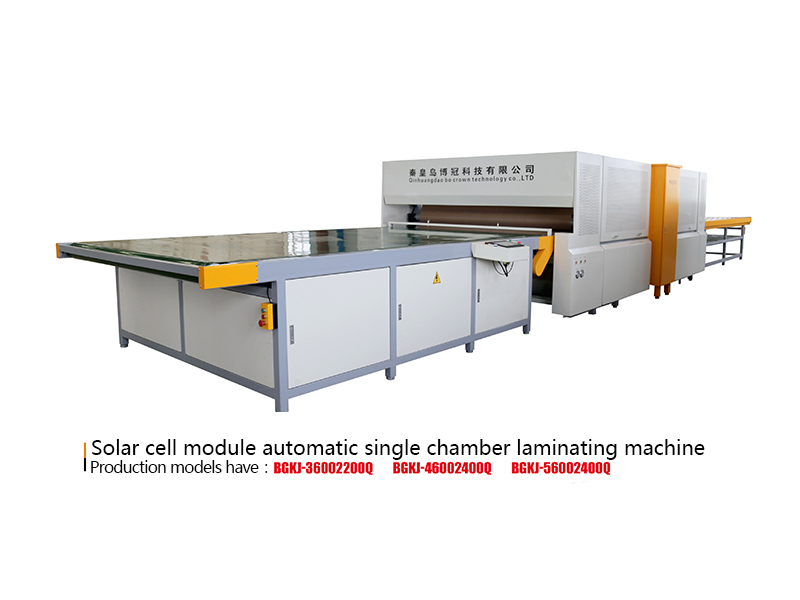

Solar cell module automatic single chamber laminating machine
The author: Update time:2017-07-01 The number of clicks:1418



Equipment model

BGKJ-36002200Q

Laminated area

3.6m×2.2m

Dimensions

12m×3.1m×1.8m

equipment weight

11T

power supply

AC380V3 phase 5 lines

Peak power consumption

68KW

Vacuum pump rate

70L/S

Normal working power consumption

20KW

control method

automatic / manual

Ultimate vacuum

20Pa

heating method

SD320 heat transfer oil heating

Temperature control mode

Self - tuning intelligent PID control

The highest temperature of the table

180

Temperature uniformity

± 1.5 ℃, multi-point temperature control

Operating temperature range

100180

Temperature controllable accuracy

≤±1
