Model

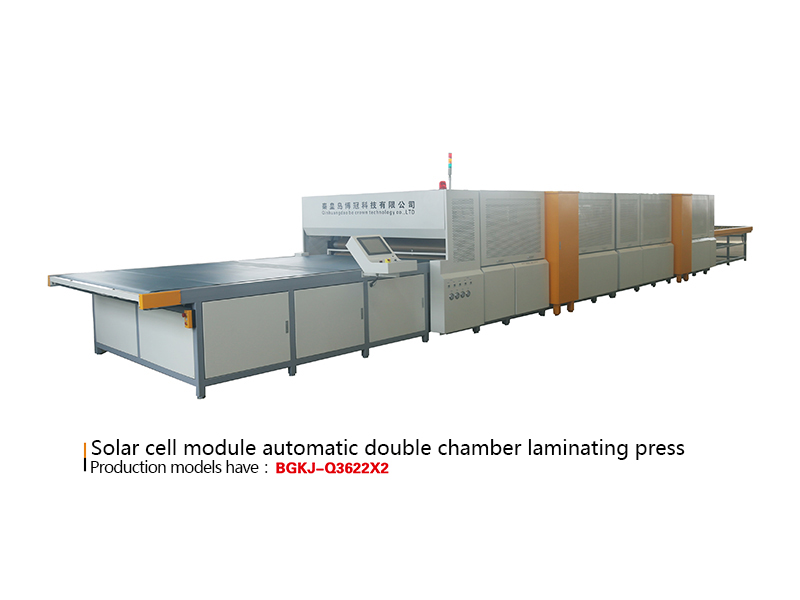

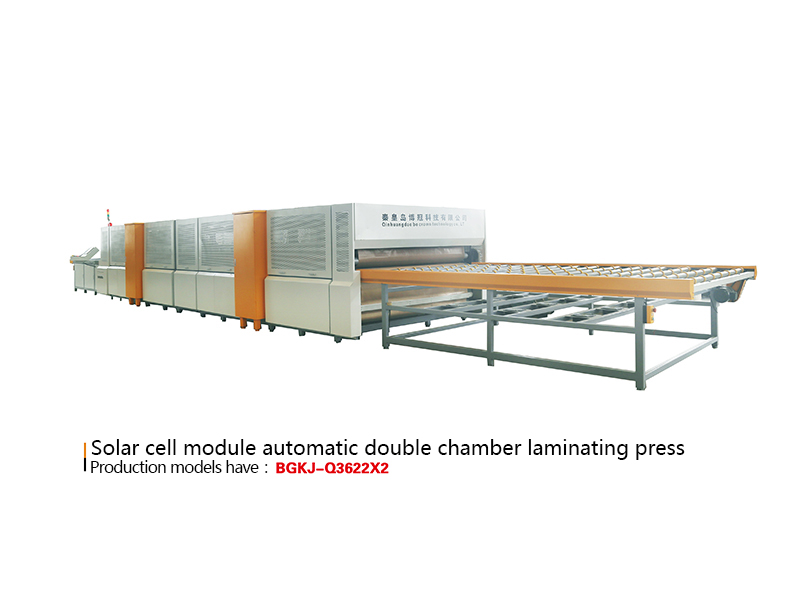

Automatic photovoltaic laminator for solar photovoltaic cell module BGKJ-Q3622X2

Device parameters

Dimensions

17000×3100×1800（mm）

Equipment weight approx

22T

power supply

AC380V3 phase 5 lines

Compress air pressure

0.6～0.8MPa

Compressed air flow

≥400L/min

Effective lamination area

(3600X2200)mm2

Laminated chamber height

25mm

Installed capacity

110KW

Normal working power

60KW

Vacuum pump evacuation rate

70L/S

Control platform

touch screen

Heating the maximum temperature

180℃

Heating platform

Per square meter unevenness ≤ 200um

Temperature range

30℃--180℃

The entire heating platform

Uneven temperature distribution ≤ ± 1.5 ℃

Temperature control accuracy

±1℃

Use temperature range

Room temperature ~ 175 ℃

Lamination time

Depending on the material

Take time

5～8min

Operating vacuum

100～15Pa

Cover the trip

300mm
