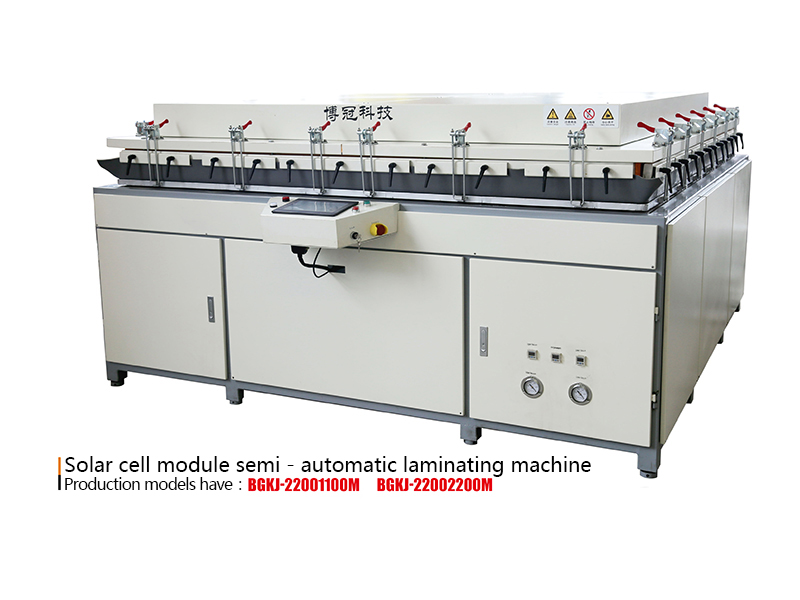

Equipment model |
BGKJ-22001100m |
Laminated area |
2.2m×1.1m |
|
Dimensions |
2600mm×1700mm×1400m |
equipment weight |
4T |
|
power supply |
380V 3 phase 5 lines |
Peak power consumption |
33KW |
|
Vacuum pump rate |
30L/S |
Normal working power consumption |
9KW |
|
control method |
automatic / manual |
Ultimate vacuum |
20Pa |
|
heating method |
SD320 heat transfer oil heating |
Temperature control mode |
Self - tuning intelligent PID control |
|
The highest temperature of the table |
180℃ |
Temperature uniformity |
± 1.5 ℃, multi-point temperature control |
|
Operating temperature range |
Room temperature ~ 165 ℃ |
Temperature controllable accuracy |
≤±1℃ |
|
Equipment model |
BGKJ-22002200m |
Laminated area |
2.2m×2.2m |
|
Dimensions |
2850mm×2600mm×1400m |
equipment weight |
5T |
|
power supply |
380V 3 phase 5 lines |
Peak power consumption |
38KW |
|
Vacuum pump rate |
30L/S |
Normal working power consumption |
15KW |
|
control method |
automatic / manual |
Ultimate vacuum |
20Pa |
|
heating method |
SD320 heat transfer oil heating |
Temperature control mode |
Self - tuning intelligent PID control |
|
The highest temperature of the table |
180℃ |
Temperature uniformity |
± 1.5 ℃, multi-point temperature control |
|
Operating temperature range |
Room temperature ~ 165 ℃ |
Temperature controllable accuracy |
≤±1℃ |
